ESD (TASKS AND STATES)

 Tasks in embedded system

  • a task is a process or thread in an operating system.
  • an application program is also said to be a program consisting of tasks.
  • Task: it is the term used in the RTOS in the embedded system.
  • runs when it is scheduled by the OS.
  • task request or sends or recieves messages through OS functions.
  • task is that executional unit of computation which is controllled by (i) OS process scheduling mechanism--->which executes on CPU. (ii) OS process resource management mechanism that lets it use the system memory, files, network, printer.
  • Task is an independent process.
  • No Task can call another Task. Task can send messages that lets another Task run.
  • The OS can block a running Task and let another task gain the access CPU to run the service code.
for example: AUTOMATIC CHOCOLATE VENDING MACHINE

  1. Task user keypad input
  2. Task read amount
  3. chocolate delivery Task
  4. Display Task
  5. GUI Task
  6. Communication task
STATES OF A TASK:

  1. Idle state(unattached or not registered).
  2. Ready state( registered or attached).
  3. Running state.
  4. Blocked (waiting state) state.
  5. Delayed for the preset period.
IDLE (CREATED)state:
  • Task has been created and memory is allocated to it. however it is not ready and not scheduled by the OS(kernal).
READY (ACTIVE)state:
  •  The created task is ready and is scheduled by the kernal but not running at present as another high priority task is scheduled to run and get system resources at this instant.
RUNNING state:
  • Executing the codes and getting the system resources at this instance. It will run till it needs some IPC (input) or wait for an event or till it gets preempted by another higher priority task than this one.
BLOCKING(WAITING) state:
  • Execution of task codes suspends after saving the needed parameters into its context.
  • It needs some IPC (input) or it needs to wait for an event or wait for higher priority task to block to enable running after blocking.
  • A task is pending while it waits for an input from the keyboard or a file. The scheduler then puts it in the blocked state
DELETED (FINISHED) state:
  • The created task has memory deallotted to its structure.  It frees the memory.  Task has to be re-created




Comments

Post a Comment

Popular posts from this blog

VLSI (CMOS LATCH UP)

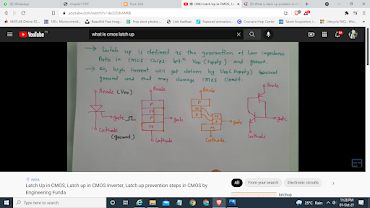

 LATCH UP IN CMOS: what is meant by latch-up? Generation of low impedance patch between the Vdd and GND in CMOS circuit. This makes a high amount of current driven from Vdd to GND by this the CMOS will be destroyed. SCR analogy to understand the latch-up: let us take four-layer SCR like below and apply Vdd at the anode and GND at the cathode. after you are given the Vdd and GND, if we give a trigger( small pulse) at the gate the SCR will Turn ON now current flows through it but there is no chance to turn it Off, This is called latch-up in SCR. The above scenario is the same in the transistor topology of SCR. LATCH UP IN BASIC CMOS INVERTER: By redrawing the Mos circuit using Transistors we get: We can observe that the circuit we just drawn is the same as the circuit of SCR using transistors. There are two conditions in which the LATCH-UP happens they are: 1. if  Vout > Vdd: in this case, the emitter of Q1 is high so as a result, the emitter-base junction gets forward biased...
